Digital Flow Meter
Our Turbine Flow Meter has a flow sensor with a magnetic muti-bladed spinning rotor (impeller) mounted inside at right angles to the flow. The rotational speed of the impeller is proportional to the velocity of the fluid. The pulse generated is transmitted and converted into a volumetric measurement.
Features
FT-650
-
Digital Flow Meter Measuring Flow Rate from 0.05 m³/hr to 500 m³/hr
-
Combined indicator / Totalizer / Batcher / Rate switch / Pulsar Mode
-
Dual Sensor, Dual Line, Single Meter, for RO Applications
-
Remote or Local Reset
-
Optional Computer Interface with RS485 or 4-20mA Output
-
Batcher And Totalizer
Relay gets energized after a fixed quantity of water passes through the sensor. The batcher has a auto reset, manual reset & dual relay operation facility. Batch quantity counts downwards till zero value.
-
Flow Compariator
The meter is supplied with two sensors for RO permeate and reject line. The meter displays both the flow rates and calculates percentage recovery.
-
Rate Switch Mode
The relay is programmed to get energized whenever actual flow falls below the set value. Display shows “LOW FLOW RATE”. Ideal for flow interlock, chemical dosing.
-
Pulser
Meter can be configured to any metering /dosing pump. Chemical dosing can be done on-line proportional to flow.
-
Optional Data Logger
The flow meter is available with data logger option where flow rate & total flow with date and time is stored in a 2GB Memory card.

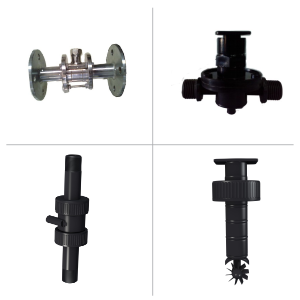

Flow Sensor
Various types of sensors available from 10NB to 300NB line size with wide range of process connection as well as material of construction
• 6NB , 20NB , 25NB & 50NB Full bore
• 40NB to 300NB Insertion type
Flow Sensors
1. Full Bore Sensor
Features:
• Inexpensive and accurate
• All Plastic wetted parts
• Easy to install and maintain
• Threaded housing allows field maintenance.
• Each fitting individually calibrated and marked with K factor. (ml/pulse)
• Ceramic ball bearing for superior low flow performance
• High amplitude pulse output signal can travel even 100 meter distance without the need of transmitter
• Sensor can be used directly with PLC or Data logger
• For best results it is recommended to provide a straight run of 10 and 5D on the upstream and downstream respectively
Full Bore Sensor
| RANGES | 6 NB | 20 NB | 25 NB | 50 NB |
|---|---|---|---|---|
| Flow Range min. | 0.05 m3/hr | 0.1 m³/hr | 0.25 m3/hr | 0.1 m³/hr |
| Flow Range max. | 0.5 m3/hr | 2.5 m³/hr | 8.0 m3/hr | 30 m3/hr |
| End connections | BSPM | BSPM | BSPM | BSPM |
| Face to Face Dim. | 88mm | 88mm | 205mm | 260mm |
| SR.NO | DESCRIPTION | SPECIFICATION |
|---|---|---|
| 1 | Type | Full Bore Turbine |
| 2 | Fluid | Water |
| 3 | S.G. Of Medium | 1 |
| 4 | Housing | GF Nylon / Noryl |
| 5 | Impeller | Polypropylene |
| 6 | Bearing | Ceramic |
| 7 | Pin / Shaft | Carbide |
| 8 | Sensing Element | Hall Effect I.C |
| 9 | Accuracy | ±2% Of Full Scale |
| 10 | Maximum Temp | 60° C |
| 11 | Maximum Pressure | 5.0 kg/cm2 |
| 12 | Pressure Drop | 0.3 Kg/cm2 at Max.flow |
| 13 | Cable Length(STD) | 3 mtr. Shielded / 5 mtr(optional) |
| *3/5 meter Teflon cable optional |
2. Insertion Sensor
Features:
• Inexpensive and accurate
• Each fitting individually calibrated and marked with K factor (ml/pulse)
• Ceramic ball bearing for superior low flow performance
• High amplitude pulse output signal can travel even 100 meter distance without the need of transmitter
• Insertion type sensor also available with solvent cementable adapters for PVC tees
• Fitting automatically set probe at correct depth and orientation
• SS Tri clover sensor for Food grade & pharma application
Insertion Sensor
| LINE SIZE | FLOW RANGE | |
|---|---|---|
| M³/hr | ||
| MIN | MAX | |
| 40 NB | 0.5 | 19 |
| 50 NB | 3.5 | 35 |
| 65 NB | 5 | 50 |
| 80 NB | 9 | 90 |
| 100 NB | 14 | 140 |
| 125 NB | 22 | 220 |
| 150 NB | 30 | 300 |
| 200 NB | 50 | 500 |
For larger than 200NB line size sensors are available with Hot tab assembly for easy maintenance
Pipe Fitting
- Body and Impeller: Engineering plastic
- Installation fittings
Material of Construction
| Sensor Body | Noryl |
| Impeller | Noryl |
| Shaft/Pin | Carbide |
| Bearing | Ceramic |
| Sensing Element | Hall Effect I.C |
| Maximum Pressure | 5 kg/cm2 |
| Maximum Temp | 60°C |
| Accuracy | ±2% of Full Scale |
Flow Fitting
Features:
• Manufactured in the various dimensions of the matching pipes with extremely durable flange ends is incomparable in quality as well as functionality
• Flanges drilled as per BSTD standard optional drilling ANSI
| BSTD FLANGE DETAILS | L | D | W | |
|---|---|---|---|---|
| 40 NB | 108 | Φ42 | 48.3 | |
| 50 NB | 300 | Φ42 | 60.33 | |
| 65 NB | 300 | Φ42 | 73 | |
| 80 NB | 300 | Φ42 | 88.9 | |
| 100 NB | 300 | Φ42 | 114.3 | |
| 125 NB | 300 | Φ42 | 141.3 | |
| 150 NB | 300 | Φ42 | 168.3 | |
| 200 NB | 300 | Φ42 | 219.1 |
Note:-Insertion depth (d) should be 10% of pipe diameter (W)
